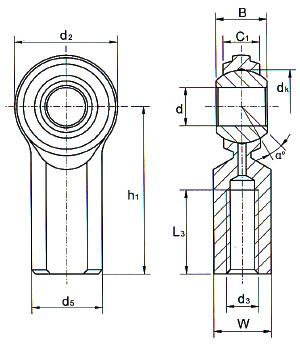

-Rod body with right or left-hand female thread.
-Rod body pressed around inner ring.
-Surface of rod body zinc plated.
-In inch dimension series.
|
Part No. |
Dimensions |
Load
Rating |
Weight |
Sliding
Contact
Surfaces |
Relubrication
Needed |
Integral
Seals |
|
d |
B |
C1 |
h1 |
d2 |
d5 |
W |
dk |
L3
min |
d3
2B |
¦Á
¡Ö |
|
CF 3* |
4.826 |
7.92 |
5.94 |
26.97 |
15.88 |
10.31 |
7.92 |
11.10 |
12.70 |
10-32 |
10 |
9.247 |
0.018 |
Steel/Steel |
Yes |
|
|
CF 4* |
6.350 |
9.53 |
6.35 |
33.32 |
19.05 |
11.91 |
9.53 |
12.70 |
17.45 |
1/4-28 |
13.5 |
14.269 |
0.023 |
Steel/Steel |
Yes |
|
|
CF 5* |
7.938 |
11.10 |
7.92 |
34.93 |
22.23 |
12.70 |
11.10 |
15.88 |
17.45 |
5/16-24 |
11 |
17.009 |
0.036 |
Steel/Steel |
Yes |
|
|
CF 6 |
9.525 |
12.70 |
9.12 |
41.28 |
25.40 |
17.45 |
14.27 |
18.26 |
20.62 |
3/8-24 |
11 |
22.627 |
0.059 |
Steel/Steel |
Yes |
|
|
CF 7 |
11.113 |
14.27 |
10.31 |
46.02 |
28.58 |
19.05 |
15.88 |
20.62 |
23.80 |
7/16-20 |
10.5 |
28.400 |
0.082 |
Steel/Steel |
Yes |
|
|
CF 8 |
12.70 |
15.88 |
11.50 |
53.98 |
33.32 |
22.23 |
19.05 |
23.80 |
26.97 |
1/2-20 |
10 |
40.459 |
0.132 |
Steel/Steel |
Yes |
|
|
CF 10 |
15.875 |
19.05 |
12.29 |
63.50 |
38.10 |
25.40 |
22.23 |
28.58 |
34.93 |
5/8-18 |
13 |
43.203 |
0.195 |
Steel/Steel |
Yes |
|
|
CF 12 |
19.05 |
22.23 |
15.06 |
73.03 |
44.45 |
28.58 |
25.40 |
33.32 |
39.67 |
3/4-16 |
12 |
63.193 |
0.295 |
Steel/Steel |
Yes |
|
-For left-hand thread, please add suffix ¡°L¡±, e.g. CFL 10.
-Lubricating hole or grease nipple isn¡¯t available for the sizes marked ¡°*¡±
When a grease nipple is required for other sizes, please use the sign CF..S.
