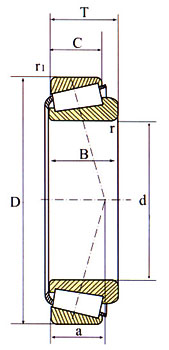

Bearing No.30000	ISO355	Boundary dimensions（mm）					Load Rating、（kN）		Allowable Rotational Speed（rpm）		Weight kg
Bearing No.30000	ISO355	d	D	T	B	C	Cr	Cor	Grease	oil	Weight kg
30302	2FB	15	42	14.25	13	11	22.8	21.5	9000	12000	0.094
30203	2DB	17	40	13.25	12	11	20.8	21.8	9000	12000	0.079
30303	2FB	17	47	15.25	14	12	28.2	27.2	8500	11000	0.129
32303	2FD	17	47	20.25	19	16	35.2	36.2	8500	11000	0.173
32904	2BD	20	37	12	12	9	13.2	17.5	9500	13000	0.056
32004	3CC	20	42	15	15	12	25.0	28.2	8500	11000	0.095
30204	2DB	20	47	15.25	14	12	28.2	30.5	8000	10000	0.126
30304	2FB	20	52	16.25	15	13	33.0	33.2	7500	9500	0.165
32304	2FD	20	52	22.25	21	18	42.8	46.2	7500	9500	0.230
329/22	2BC	22	40	12	12	9	15.0	20.0	8500	11000	0.065
320/22	3CC	22	44	15	15	11.5	26.0	30.2	8000	10000	0.100
32905	2BD	25	42	12	12	9	16.0	21.0	6300	10000	0.164
32005	4CC	25	47	15	15	11.5	28.0	34.0	7500	9500	0.11
33005	2CE	25	47	17	17	14	32.5	42.5	7500	9500	0.129
30205	3CC	25	52	16.25	15	13	32.2	37.0	7000	9000	0.154
33205	2DE	25	52	22	22	18	47.0	55.8	7000	9000	0.216
30305	2FB	25	62	18.25	17	15	46.8	48.0	6300	8000	0.263
31305	7FB	25	62	18.25	17	13	40.5	46.0	6300	8000	0.262
32305	2FD	25	62	25.25	24	20	61.5	68.8	6300	8000	0.368
329/28	2BD	28	45	12	12	9	16.8	22.8	750	9500	0.069
320/28	4CC	28	52	16	16	12	31.5	40.5	6700	8500	0.142
332/28	2DE	28	58	24	24	19	58.0	68.2	6300	8000	0.286
32906	2BD	30	47	12	12	9	17.0	23.2	7000	9000	0.072
32006×2	-	30	55	17	16	14	27.8	35.5	6300	8000	0.16
32006	4CC	30	55	17	17	13	35.8	46.8	6300	8000	0.170
33006	2CE	30	55	20	20	16	43.8	58.8	6300	8000	0.201
30206	3DB	30	62	17.25	16	14	43.2	50.5	6000	7500	0.231
32206	3DC	30	62	21.25	20	17	51.8	63.8	6000	7500	0.287
33206	2DE	30	62	25	25	19.5	63.8	75.5	6000	7500	0.342
30306	2FB	30	72	20.75	19	16	59.0	63.0	5600	7000	0.387
31306	7FB	30	72	20.75	19	14	52.5	60.5	5600	7000	0.392
32306	2FD	30	72	28.75	17	23	81.5	96.5	5600	7000	0.562
