Bearing No.

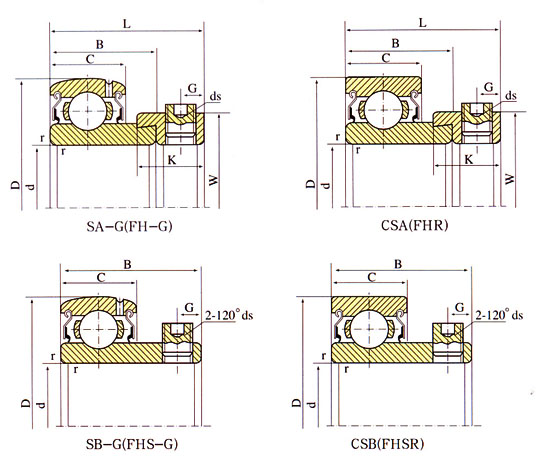

Boundary Dimensions

d

D

B

C

L

W

K

rmin

G

ds

SA201

12mm

40

19

12

28.6

28.5

13.5

0.6

4.8

1/4-28

M6*1

SA201-8

1/2

SA202

15mm

SA202-10

5/8

SA203

17mm

SA204

20mm

47

21.4

14

31

32

13.5

1

4.8

1/4-28

M6*1

SA204-12

3/4

SA205

25mm

52

21.4

15

31

38.1

13.5

1

4.8

1/4-28

M6*1

SA205-14

7/8

SA205-15

15/16

SA205-16

1

SA206

30mm

62

23.8

16

35.7

44.4

15.9

1

6

5/16-24

M8*1

SA206-17

1 1/16

SA206-18

1 1/8

SA206-19

1 3/16

SA206-20

1 1/4(s)

SA207

35 mm

72

25.4

17

38.9

55.6

17.5

1.1

6.8

5/16-24

M8*1

SA207-20

1 1/4

SA207-21

1 5/16

SA207-22

1 3/8

SA207-23

1 7/16

SA208

40mm

80

30.1

18

43.7

60.3

18.3

1.1

6.8

5/16-24

M8*1

SA208-24

1 1/2

SA208-25

1 9/16

SA209

45mm

85

30.1

19

43.7

63.5

18.3

1.1

6.8

5/16-24

M8*1

SA209-26

1 5/8

SA209-27

1 11/16

SA209-28

1 3/4

SA210

50mm

90

30.1

20

43.7

69.8

18.3

1.1

6.8

5/16-24

M8*1

SA210-29

1 13/16

SA210-30

1 7/8

SA210-31

1 15/16

SA210-32

2(s)
